T Sliding Nut
T Sliding Nut,also known as Slide T-Nut,Slide Nuts, for series 2020/3030/4040/4545 aluminium extrusions, material: steel, Nickel plated, size: M4-M8 From China T Nuts Manufacturer.
 |
 |
T Sliding Nut , Slide T-Nut, Slide Nuts
Material: Steel ; Surface treatment: Zinc Plated , Nickel Plated;
Size: M4 - M8

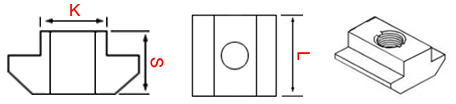

T Sliding Nut Specifcation:
| Aluminum Extrusions |
Size | k | s | L |
| 2020 | M4 | 6.05 | 4.51 | 9.82 |
| M5 | 5.96 | 4.52 | 9.82 | |
| M6 | 6.01 | 4.51 | 9.83 | |
| 3030 | M4 | 8.05 | 5.81 | 16.08 |
| M5 | 7.61 | 6.15 | 15.72 | |
| M6 | 8.08 | 6.12 | 15.72 | |
| M8 | 8.01 | 6.14 | 15.75 | |
| 4040 | M4 | 8.08 | 9.45 | 19.59 |
| M5 | 8.09 | 9.41 | 19.57 | |
| M6 | 8.03 | 9.43 | 19.56 | |
| M8 | 8.05 | 9.45 | 19.75 | |
| 4545 | M4 | 10.05 | 8.41 | 17.83 |
| M5 | 10.03 | 9.09 | 17.65 | |
| M6 | 9.85 | 8.45 | 18.03 | |
| M8 | 9.87 | 8.52 | 17.75 |
