Spring Wire Safety Pins
Spring Wire Safety Pins, quick release type, also known as spring clips, made of spring steel Zinc plated size D2-D10 From China Safety Pins Manufacturer.
 |
 |
Spring Wire Safety Pins , Spring safety clips Quick release type, used on motocycles, boat etc...
Material: Spring steel, zinc plated
Size: Dia. 2.0mm - Dia. 10mm

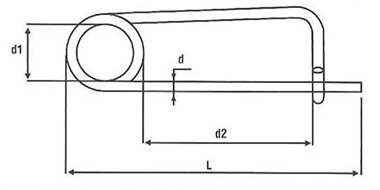

| Size | Wire Dia. (d) |
Length (L) |
Inner Height (d1) |
Inner Width (d2) |
| #2 ( 2Χ75 ) | 2 | 75 | 15.6 | 43.5 |
| #3 ( 3Χ110 ) | 3 | 110 | 25.7 | 63.3 |
| #4 ( 4Χ160 ) | 4 | 160 | 35.96 | 100 |
| #5 ( 5Χ190 ) | 5 | 190 | 44.95 | 113.5 |
| #6 ( 6Χ200 ) | 6 | 200 | 50 | 118 |
| #6 ( 6Χ220 ) | 6 | 220 | 52.15 | 140 |
| #6.5 ( 6.5Χ240 ) | 6.5 | 235 | 61.5 | 120 |
| #8 ( 6Χ280 ) | 8 | 280 | 68.75 | 166 |
