M1800 Crescent Retaining Ring

Crescent Retaining ring M1800 standard for shaft, material by spring steel, black oxide, size H03-H50 , From China Retaining rings Manufacturer.

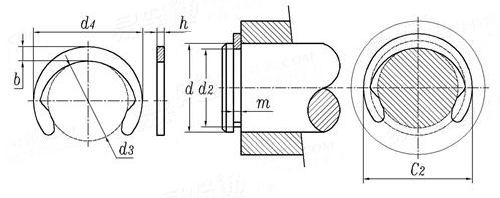

M1800 Crescent Retaining Ring M1800 Crescent Retaining Ring

M1800 Crescent Retaining Ring , M1800/H

Material: Spring Steel ; Surface treatment:black oxide;
Hardness: HRC47-HRC52;
Size: H3-H50

M1800 Crescent Retaining Ring specification:

Size Groove Ring
Diameter (B)
[mm.]		 Diameter (G)
[mm.]		 Width (W)
[mm.]		 Depth
[mm.]		 Diameter (D)
[mm.]		 Thickness (t)
[mm.]
3 2.31 0.43 0.36 2.18 0.41
4 3.2 0.43 0.41 3 0.41
5 3.99 0.64 0.51 3.81 0.61
6 5 0.74 0.51 4.8 0.71
6.5 5.79 0.74 0.36 5.59 0.71
7 5.99 0.84 0.51 5.79 0.79
8 7.01 0.84 0.51 6.81 0.79
9 8 1.09 0.51 7.8 0.99
10 8.99 1.09 0.51 8.74 0.99
11 10.01 1.09 0.51 9.65 0.99
12 10.9 1.09 0.56 10.54 0.99
13 11.81 1.09 0.61 11.4 0.99
14 12.7 1.09 0.66 12.29 0.99
15 13.59 1.09 0.71 13.21 0.99
16 14.5 1.09 0.76 14.1 0.99
17 15.39 1.09 0.79 14.91 0.99
18 16.31 1.3 0.84 15.8 1.19
19 17.2 1.3 0.89 16.69 1.19
20 18.11 1.3 0.94 17.55 1.19
22 19.89 1.3 1.04 19.41 1.19
23 20.8 1.3 1.09 20.19 1.19
24 21.69 1.3 1.14 21.11 1.19
25 22.61 1.3 1.19 22 1.19
26 23.5 1.3 1.24 22.91 1.19
28 25.2 1.6 1.4 24.61 1.5
30 27 1.6 1.5 26.29 1.5
32 28.8 1.6 1.6 28.09 1.5
35 31.5 1.6 1.75 30.81 1.5
36 32.41 1.85 1.8 31.7 1.75
38 34.19 1.85 1.91 33.4 1.75
40 35.99 1.85 2.01 35.2 1.75
42 37.8 1.85 2.11 37.01 1.75
45 40.49 1.85 2.26 39.6 1.75
48 43.21 1.85 2.39 42.29 1.75
50 45.01 2.16 2.49 43.99 2.01
52 46.99 2.16 2.49 46 2.01
55 50.01 2.16 2.49 48.49 2.01
