GOST 13940 Retaining Ring Concentric Snap Rings
Retaining rings for shaft as per DIN 471 standard, also known as External retaining ring, d.10--d200 , From China Retaining rings Manufacturer.
 |
 |
GOST 13940 Retaining Ring Concentric Snap Rings , External Retaining ring
Material: Steel ; Surface treatment:black oxide;
Hardness: HRC44-HRC52;
Size: E10-E200

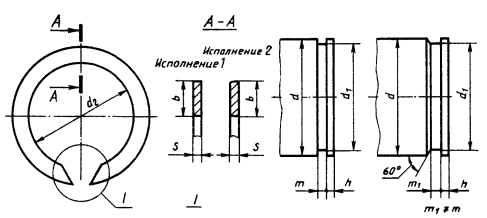

GOST 13940 Retaining Ring Concentric Snap Rings specification:
| Size | Ring | Weight | ||
| d2 | s | h | kg/1000Pcs | |
| 4 | 3.5 | 0.4 | 0.,8 | 0.6o |
| 5 | 4.5 | 0,6 | 0.75 | |
| 6 | 5,4 | 0.7 | 1,2 | o.9o |
| 7 | 6,4 | 0,8 | 1,06 | |
| 8 | 7,2 | 1 | 1.7 | 1.52 |
| g | 8,2 | 1.68 | ||
| 1o | 9.2 | 1,96 | ||
| 12 | 11,o | 2 | 3.39 | |
| 13 | 11,9 | 3.96 | ||
| u | 12,9 | 4.27 | ||
| 15 | 13,8 | 5,13 | ||
| 16 | 14,7 | 1.2 | 2.5 | 6,08 |
| 17 | 15,7 | 6.47 | ||
| 18 | 16,5 | 8,15 | ||
| 19 | 17.5 | 8.66 | ||
| 20 | 18,2 | 3.2 | 10.6 | |
| 22 | 20,2 | 11,7 | ||
| 23 | 21,1 | 12,7 | ||
| 24 | 22,1 | 13,7 | ||
