DIN 912 Socket Cap Screws
Socket Cap Screws DIN 912 standard, made of steel, Class 4.8, 8.8 and 12.9, size M6-M20 From China Socket Cap Screws Manufacturer.
 |
 |
DIN 912 Socket Cap Screws ,
Material: Steel ; Surface treatment: Zinc Plated, Black oxide, Flake Zinc, Hot Dip Galvanized;
Grade: 4.8, 8.8;
Size: M6 - M16

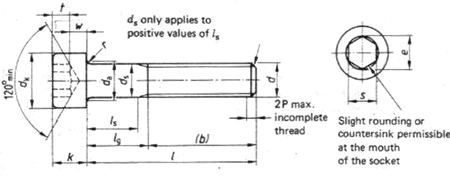

DIN 912 Socket Cap Screws Specification:
| Size | t min | s | k max | d2 |
| M3 | 1.3 | 2.5 | 3 | 5.5 |
| M4 | 2 | 3 | 4 | 7 |
| M5 | 2.5 | 4 | 5 | 8.5 |
| M6 | 3 | 5 | 6 | 10 |
| M8 | 4 | 6 | 8 | 13 |
| M10 | 5 | 8 | 10 | 16 |
| M12 | 6 | 10 | 12 | 18 |
| M14 | 7 | 12 | 14 | 21 |
| M16 | 8 | 14 | 16 | 24 |
| M18 | 9 | 14 | 18 | 27 |
| M20 | 10 | 17 | 20 | 30 |
| M24 | 12 | 19 | 24 | 36 |
| M27 | 13.5 | 19 | 27 | 40 |
| M30 | 15.5 | 22 | 30 | 45 |
| M36 | 19 | 27 | 36 | 54 |
