DIN 7340 Steel Tubular Rivets
Tubular Rivet, also known as hollow rivet, Tubular Rivet according to DIN 7340 standard, material by steel size D1.0-D10.0 From China Tubular Rivets Manufacturer.
 |
 |

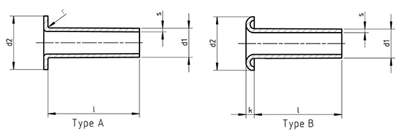

Tubular Rivet , DIN 7340 , Steel, Nickel Plated Type Form A / Form B
Material: Steel;
Size: Dia. 1.2mm - Dia. 10mm
| Size ( d1 ) mm |
Head Diameter ( dk ) mm |
k mm | Wall Thickness ( h ) mm |
| 1.2 | 2 | 0.3 | 0.2 |
| 1.5 | 2.5 | 0.35 | 0.2 |
| 0.4 | 0.25 | ||
| 2 | 3.2 | 0.4 | 0.2 |
| 0.45 | 0.3 | ||
| 2.5 | 4 | 0.4 | 0.25 |
| 0.5 | 0.3 | ||
| 0.6 | 0.4 | ||
| 3 | 4.5 | 0.5 | 0.25 |
| 0.5 | 0.3 | ||
| 0.6 | 0.5 | ||
| 4 | 6 | 0.65 | 0.3 |
| 0.7 | 0.4 | ||
| 0.8 | 0.5 | ||
| 5 | 7.5 | 0.75 | 0.3 |
| 0.9 | 0.5 | ||
| 1 | 0.75 | ||
| 6 | 9 | 0.95 | 0.4 |
| 1 | 0.5 | ||
| 1.1 | 0.75 | ||
| 8 | 12 | 1.2 | 0.4 |
| 1.3 | 0.5 | ||
| 1.4 | 0.75 | ||
| 1.5 | 1 | ||
| 10 | 15 | 1.5 | 0.5 |
| 1.6 | 0.75 | ||
| 1.7 | 1 |
