DIN 472 Internal Retaining Ring for Bore

Retaining rings for bore, also known as internal retaining ring or internal circlips, DIN 472, Steel, black oxide , , size: D10-D300 , From China Retaining rings Manufacturer.

DIN 472 Internal Retaining Ring for Bore DIN 472 Internal Retaining Ring for Bore

Retaining Ring for bore , DIN 472 , Internal Retaining ring

Material: Steel ; Surface treatment:black oxide;
Hardness: HRC47-HRC52;
Size: I10-I300

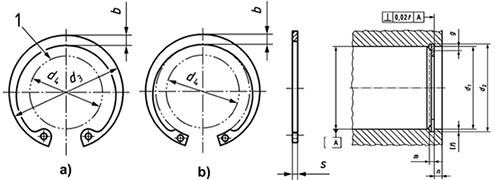

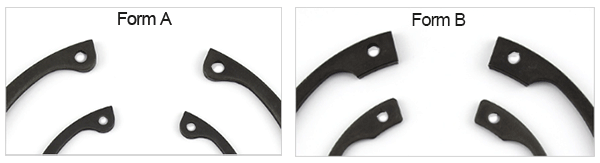

Internal Retaining Ring Type, Type A & Type B

Internal Retaining Ring type

DIN 472, Retaining Rings specification:

Size s d3 a max b approx d5 min
hole Dia.		 weight
kg/1000pcs
8 0.8 8.7 2.4 1.1 1 0.14
9 0.8 9.8 2.5 1.3 1 0.15
10 1 10.8 3.2 1.4 1.2 0.18
11 1 11.8 3.3 1.5 1.2 0.31
12 1 13 3.4 1.7 1.5 0.37
13 1 14.1 3.6 1.8 1.5 0.42
14 1 15.1 3.7 1.9 1.7 0.52
15 1 16.2 3.7 2 1.7 0.56
16 1 17.3 3.8 2 1.7 0.6
17 1 18.3 3.9 2.1 1.7 0.65
18 1 19.5 4.1 2.2 2 0.74
19 1 20.5 4.1 2.2 2 0.83
20 1 21.5 4.2 2.3 2 0.90
21 1 22.5 4.2 2.4 2 1.0
22 1 23.5 4.2 2.5 2 1.10
24 1.2 25.9 4.4 2.6 2 1.42
25 1.2 26.9 4.5 2.7 2 1.50
26 1.2 27.9 4.7 2.8 2 1.60
28 1.2 30.1 4.8 2.9 2 1.80
30 1.2 32.1 4.8 3 2 20.6
31 1.2 33.4 5.2 3.2 2.5 2.10
32 1.2 34.4 5.4 3.2 2.5 2.21
34 1.5 36.5 5.4 3.3 2.5 3.20
35 1.5 37.8 5.4 3.4 2.5 3.54
36 1.5 38.8 5.4 3.5 2.5 3.70
37 1.5 39.8 5.5 3.6 2.5 3.74
38 1.5 40.8 5.5 3.7 2.5 3.9
40 1.75 43.5 5.8 3.9 2.5 4.7
42 1.75 45.5 5.9 4.1 2.5 5.4
45 1.75 48.5 6.2 4.3 2.5 6.0
47 1.75 50.5 6.4 4.4 2.5 6.1
48 1.75 51.5 6.4 4.5 2.5 6.7
50 2 54.2 6.5 4.6 2.5 7.3
52 2 56.2 6.7 4.7 2.5 8.2
55 2 59.2 6.8 5 2.5 8.3
56 2 60.2 6.8 5.1 2.5 8.7
58 2 62.2 6.9 5.2 2.5 10.5
60 2 64.2 7.3 5.4 2.5 11.1
62 2 66.2 7.3 5.5 2.5 11.2
63 2 67.2 7.3 5.6 2.5 12.4
65 2.5 69.2 7.6 5.8 3 14.3
68 2.5 72.5 7.8 6.1 3 16
70 2.5 74.5 7.8 6.2 3 16.5
72 2.5 76.6 7.8 6.4 3 18.1
75 2.5 79.5 7.8 6.6 3 18.8
78 2.5 82.5 8.5 6.8 3 20.4
80 2.5 85.5 8.5 7 3 22
82 3 87.5 8.5 7 3 24
85 3 90.5 8.6 7.2 3.5 25.3
88 3 93.5 8.6 7.4 3.5 28
90 3 95.55 8.6 7.6 3.5 31
92 3 97.5 8.7 7.8 3.5 32
95 3 100.5 8.8 8.1 3.5 35
98 3 103.5 9 8.3 3.5 37
100 3 105.5 9.2 8.4 3.5 38
102 4 108 9.5 8.5 3.5 55
105 4 112 9.5 8.7 3.5 56
108 4 115 9.5 8.9 3.5 60
110 4 117 10.4 9 3.5 64.5
112 4 119 10.5 9.1 3.5 72
115 4 122 10.5 9.3 3.5 74.5
120 4 127 11 9.7 3.5 77
125 4 132 11 10 4 79
130 4 137 11 10.2 4 82
135 4 142 11.2 10.5 4 84
140 4 147 11.2 10.7 4 87.5
145 4 152 11.4 10.9 4 93
150 4 158 12 11.2 4 105
155 4 164 12 11.4 4 107
160 4 169 13 11.6 4 110
165 4 174.5 13 11.8 4 125
170 4 179.5 13.5 12.2 4 140
175 4 184.5 13.5 12.7 4 150
180 4 189.5 14.2 13.2 4 165
185 4 194.5 14.2 13.7 4 170
190 4 199.5 14.2 13.8 4 175
195 4 204.5 14.2 13.8 4 183
200 4 209.5 14.2 14 4 195
210 5 222 14.2 14 4 270
220 5 232 14.2 14 4 315
230 5 242 14.2 14 4 330
240 5 252 14.2 14 4 345
250 5 262 14.2 14 4 360
260 5 275 16.2 16 5 375
270 5 285 16.2 16 5 388
280 5 295 16.2 16 5 400
290 5 305 16.2 16 5 415
300 5 315 16.2 16 5 435
