DIN 11024 Spring Cotter R-clips
DIN 11024 Form E, single coiled R clips / R pins, made of spring steel, zinc plated, size 1.0-10mm From China Spring Cotter Pins Manufacturer.
 |
 |

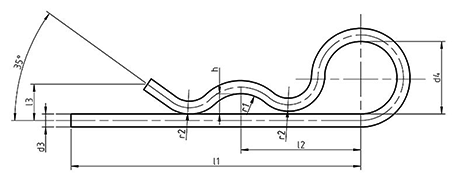

DIN 11024 Spring Cotter R Clips , DIN 11024-E single coil R clips / R Pins
Material: Spring Steel , Stainless Steel etc.
Size: Dia. 1.2mm - Dia. 30mm
DIN 11024 Spring Cotter R Clips Specification:
| Size | d3 | h | H | L | L1 | kg/Pc |
| 1.2×21 | 1.18 | 4.26 | 6.65 | 21.17 | 9.2 | 0.41 |
| 1.2×25 | 1.14 | 4.41 | 8 | 24.8 | 10.5 | 0.48 |
| 1.6×28 | 1.56 | 5.5 | 8.57 | 28.3 | 12.5 | 0.95 |
| 1.8×32 | 1.74 | 6.13 | 10.52 | 31.94 | 12.38 | 1.38 |
| 1.8×35 | 1.75 | 6.23 | 10.42 | 35.5 | 14.7 | 1.53 |
| 1.8×37 | 1.75 | 6.44 | 12.95 | 37.73 | 15 | 1.68 |
| 2×30 | 1.98 | 5.97 | 9.5 | 30 | 12 | 1.6 |
| 2×40 | 1.94 | 7.39 | 13.02 | 40.32 | 16.52 | 2.24 |
| 2×45 | 1.98 | 7.67 | 13.88 | 44.18 | 16.9 | 2.35 |
| 2×50 | 1.94 | 7.82 | 14.65 | 50.1 | 18.84 | 4.2 |
| 2.5×45 | 2.47 | 7.7 | 14.17 | 45.16 | 18.84 | 3.76 |
| 2.5×50 | 2.47 | 8.55 | 17.21 | 50 | 21 | 4.5 |
| 2.8×50 | 2.73 | 9.7 | 15.37 | 50.8 | 21.35 | 5.3 |
| 3×60 | 2.98 | 9.96 | 20.3 | 60.13 | 23.65 | 7.2 |
| 3×65 | 3 | 10.52 | 20.8 | 65.4 | 25 | 7.85 |
| 3.5×75 | 3.5 | 11.75 | 24.64 | 74.7 | 29.38 | 12.2 |
| 4×75 | 3.94 | 13 | 25.66 | 75.4 | 28.3 | 16.5 |
| 4×85 | 3.91 | 14.13 | 29.28 | 86 | 34.6 | 18.95 |
| 5×100 | 4.94 | 16.48 | 35.37 | 101 | 39.92 | 33.4 |
| 6×120 | 5.81 | 21.73 | 39.45 | 120 | 45 | 54.8 |
